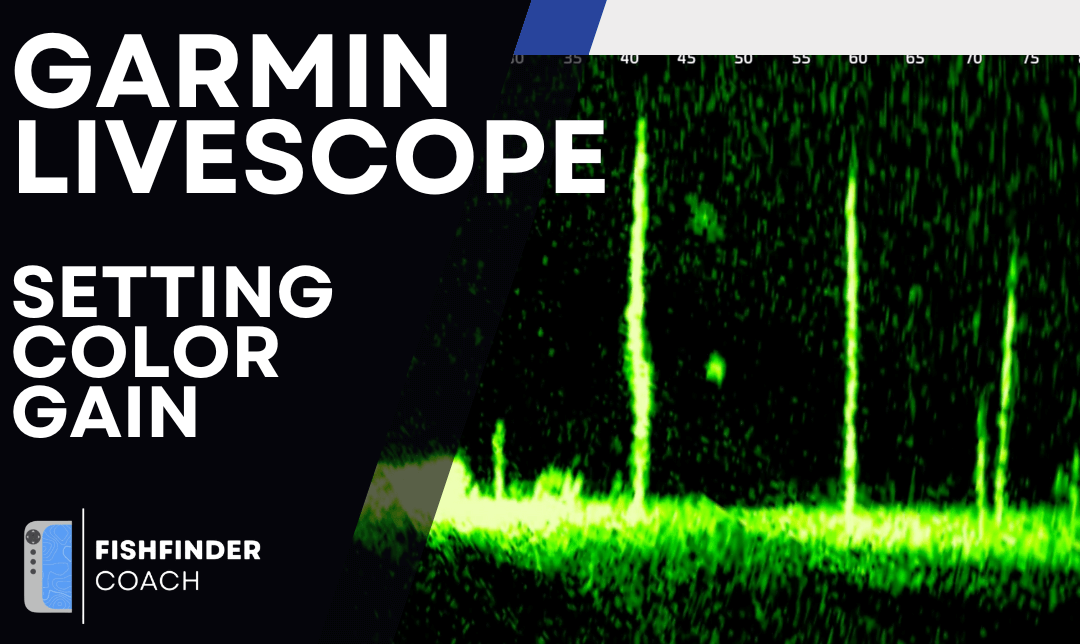

Understanding Color Gain on Garmin LiveScope LVS32 and LVS34
Color gain is an important but often misunderstood setting on Garmin LiveScope. It works similarly to contrast—adjusting the brightness and intensity of sonar returns. While it may seem like a setting to tweak frequently, in reality, most anglers leave it relatively stable, making only minor adjustments based on fish behavior and bottom composition.
What Does Color Gain Do?
Color gain determines how bright sonar returns appear on the screen. It controls the intensity of colors within your selected color scheme, affecting how soft and hard returns are displayed.
- Higher Color Gain: Increases brightness, making smaller or weaker returns like baitfish and lures more visible.
- Lower Color Gain: Reduces brightness, ensuring only the strongest returns—like big fish, rocks, or the bottom—stand out.
When Should You Adjust Color Gain?
Unlike other settings such as gain or forward range, color gain usually doesn’t require frequent adjustments. Most anglers set it once and only make slight changes when necessary. Here’s when you might want to tweak it:
- Fish Are Holding on Different Bottom Compositions: If fish are relating to softer bottoms like mud or silt, a slight color gain increase can help make them more distinguishable. If they’re on hard bottoms like rock, lowering it slightly can prevent overexposure.
- Tracking Small Bait or Lures: A small boost in color gain can help highlight tiny returns.
- Reducing Clutter Without Losing Detail: If the screen appears too bright and everything looks the same, lowering color gain can restore contrast between soft and hard returns.
The Balance: Avoiding Overexposure
Setting color gain too high makes everything on the screen brighter, but this isn’t always a good thing. If you turn it up too much, you lose the ability to differentiate between soft and hard returns. This can make it difficult to tell if you're looking at a soft target like a bait school or a hard structure like a rock pile.
- Too High: The entire screen looks too bright, and everything appears similar, making it hard to interpret the bottom composition.
- Too Low: Weak returns like baitfish and lures may disappear, making it harder to track subtle details.
Water Clarity: Minor Impact on Color Gain
While water clarity affects traditional gain settings, it has only a minimal impact on color gain—typically no more than a 1-2% adjustment. Unlike regular gain, which compensates for particulates in the water, color gain is more about display contrast than signal strength.
Practical Tips for Adjusting Color Gain
- Set It and Leave It: Once dialed in, color gain rarely needs major changes.
- Keep It Moderate: Avoid turning it too high to maintain a clear distinction between hard and soft returns.
- Adjust Based on Bottom Composition: Increase slightly for softer bottoms, decrease for harder bottoms.
- Test Before Making Big Changes: Small tweaks (1-2% at a time) are usually enough.
Final Thoughts
Color gain is a useful tool for fine-tuning your LiveScope image, but it’s not something you need to adjust often. Keeping it at a reasonable level ensures you can track baitfish and lures without losing contrast between different return types.
Adjust color gain along with gain, color limit, noise reject, and TVG to see your lure and fish easier.
I also change my color gain depending on which color palette I select depending on the different colors in the scheme.
