Garmin LVS32/LVS34 Livescope PDF Settings Guide

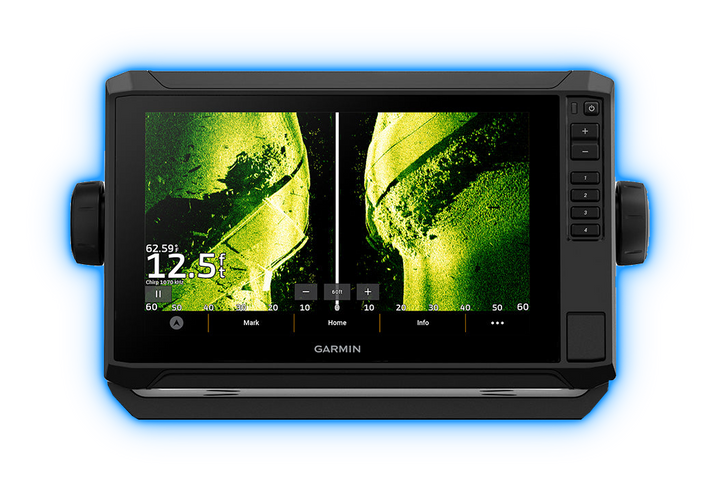

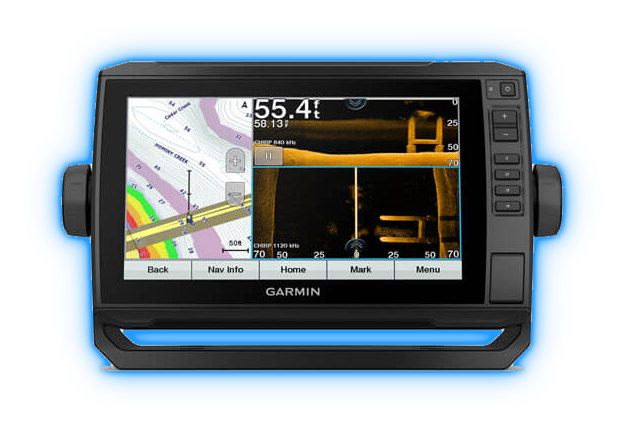

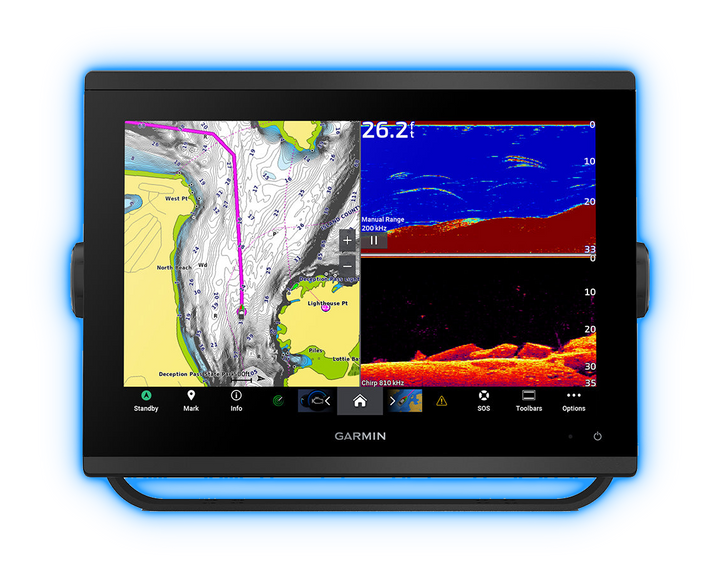

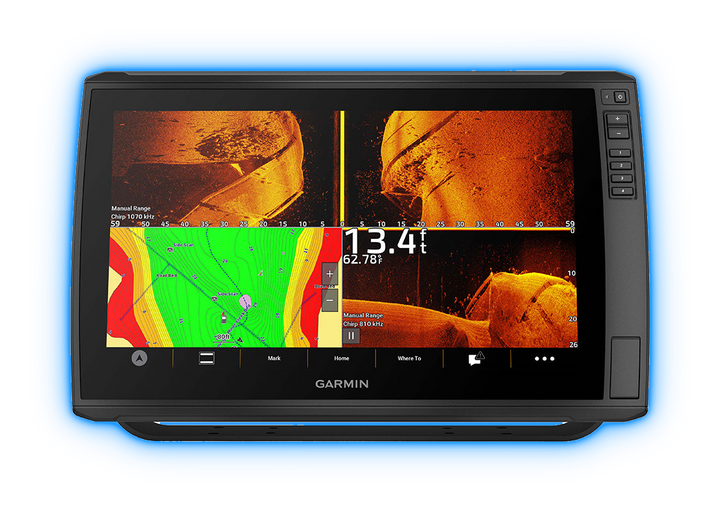

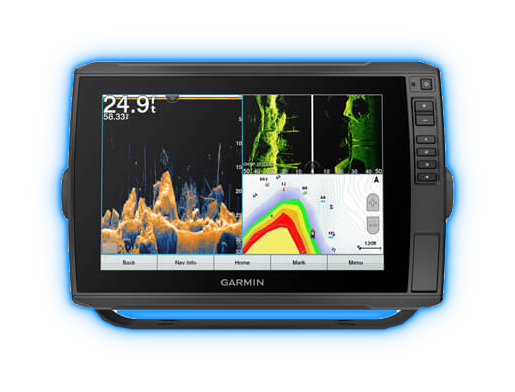

This PDF covers the Garmin LVS32 and LVS34 LiveScope transducers. Both require a GLS 10 sonar module, power, and a compatible Garmin Marine Network chartplotter. Supported families include network-capable ECHOMAP Plus, ECHOMAP UHD, ECHOMAP UHD2 sv, ECHOMAP Ultra and Ultra 2, plus compatible GPSMAP families. STRIKER and non-network ECHOMAP units are not supported. LVS62 can use compatible LiveScope hardware, but it is not covered by this LVS32/LVS34 settings guide.

The current Garmin LVS32/LVS34 Livescope PDF Settings Guide covers the following sections from the PDF:

• Troubleshooting: Setup checks and seeing your lure
• Starting Out: Key terms, presets, reset, menus, and updates
• Mounting And Orientation: Positions, aim, mounts, maps, cable, and ferrite
• Installation And Calibration: Install Depth, stabilization, compass, Flipped, pitch, and Focus
• Range, Scale, And Aim: Forward, Perspective, Down, Reverse, and Compress Range
• Gain And Filters: Gain, Noise Reject, Ghost Reject, TVG, Color Gain, and Color Limit
• Color And Display Aids: Color schemes, Bottom Fill, Trails, Grid, On-Screen Control, and Scroll History
• My Settings: One-page Forward, Down, and Perspective reference

It is not only a list of numbers. The PDF gives recommended settings or ranges for the exact transducer and explains the covered controls, setup, and screenshots that go with those recommendations.

This PDF is focused on setting up the exact transducer named on the product page. It includes screenshots and setup explanations, but the video courses are the step-by-step products for learning to read and use each sonar type.

Use the recommended settings as your normal baseline. The guide also explains the controls that change with what you are viewing, such as range or aim, and when to return to the normal setup. The recommendations are not split into different settings for different water clarity.

YouTube can be useful for individual questions. This guide puts the recommendations, explanations, screenshots, and setup information for one exact transducer into one ordered PDF, so you do not have to combine advice made for different equipment.

ChatGPT can help explain settings and answer questions. Check that its advice matches your exact fish finder and transducer. This PDF brings the recommended settings, explanations, and screenshots for the listed equipment together in one guide.

After checkout, the current store process makes the PDF available on the Course Home page, in a follow-up email, and from the Orders page when you log in with the same email used at checkout.

Yes. You can save the PDF to your phone or computer and print it at home. On an iPhone, downloaded PDFs normally appear in the Files app under Downloads or Recents.

The PDF Settings Guide is digital and a printed guide is not mailed. A Laminated Quick Reference Card is included only when the purchase option you select explicitly says it includes one.
