Humminbird XPLORE Compact MEGA Imaging PDF Settings Guide

This guide is for the XM 14 HW CMSI T Compact MEGA Side Imaging+ transducer. It comes standard with XPLORE CMSI+ packages, but it is also compatible with APEX and SOLIX G3. Match the transducer label on the cable, not the display name alone.

The current Humminbird XPLORE Compact MEGA Imaging PDF Settings Guide covers the following sections from the PDF:

• Starting Out: Definitions, Installation, Interference, Software Updates
• 2D Sonar: Frequency, Sensitivity, Contrast, Chart Speed

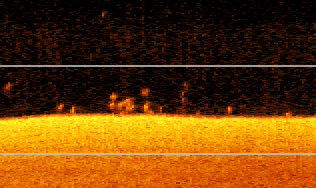

• Down Imaging: Frequency, Sensitivity, Contrast, Water Column Sensitivity, Sharpness (DI and SI), Dynamic Contrast (DI and SI)

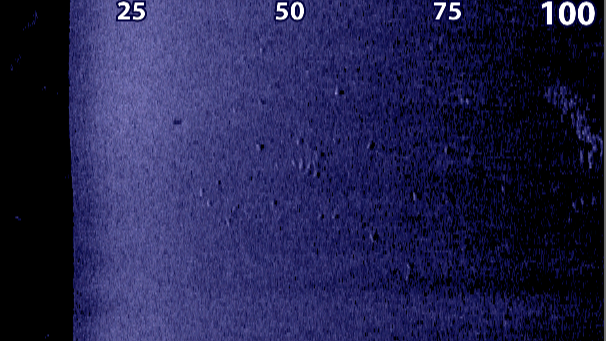

• Side Imaging: Frequency, Sensitivity, Contrast, Sensitivity Offset, Water Column Sensitivity, Range, Contour Mode
• My Settings: My Settings

It is not only a list of numbers. The PDF gives recommended settings or ranges for the exact transducer and explains the covered controls, setup, and screenshots that go with those recommendations.

This PDF is focused on setting up the exact transducer named on the product page. It includes screenshots and setup explanations, but the video courses are the step-by-step products for learning to read and use each sonar type.

Use the recommended settings as your normal baseline. The guide also explains the controls that change with what you are viewing, such as range or aim, and when to return to the normal setup. The recommendations are not split into different settings for different water clarity.

YouTube can be useful for individual questions. This guide puts the recommendations, explanations, screenshots, and setup information for one exact transducer into one ordered PDF, so you do not have to combine advice made for different equipment.

ChatGPT can help explain settings and answer questions. Check that its advice matches your exact fish finder and transducer. This PDF brings the recommended settings, explanations, and screenshots for the listed equipment together in one guide.

After checkout, the current store process makes the PDF available on the Course Home page, in a follow-up email, and from the Orders page when you log in with the same email used at checkout.

Yes. You can save the PDF to your phone or computer and print it at home. On an iPhone, downloaded PDFs normally appear in the Files app under Downloads or Recents.

The PDF Settings Guide is digital and a printed guide is not mailed. A Laminated Quick Reference Card is included only when the purchase option you select explicitly says it includes one.
